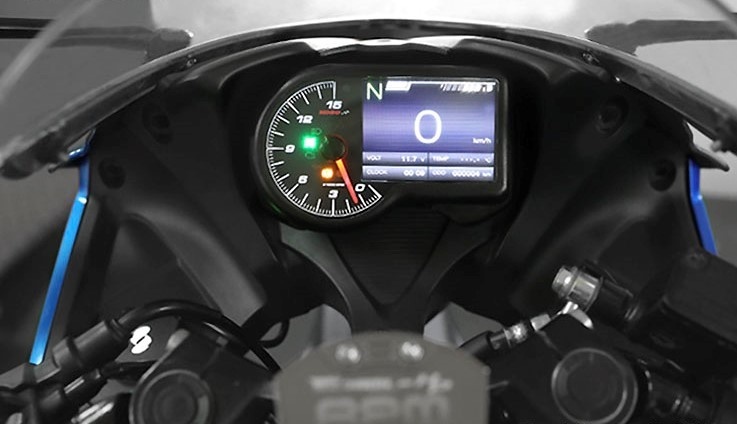

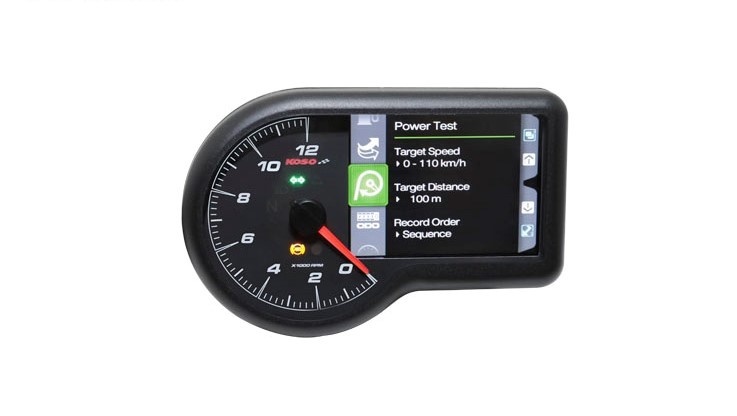

All the functions you need like speedometer, tachometer, odometer and trip, as well as the gear position are already integrated in the RX-3. Target distance and target speed ensure that the information,
including the condition of your vehicle, is always available to you.

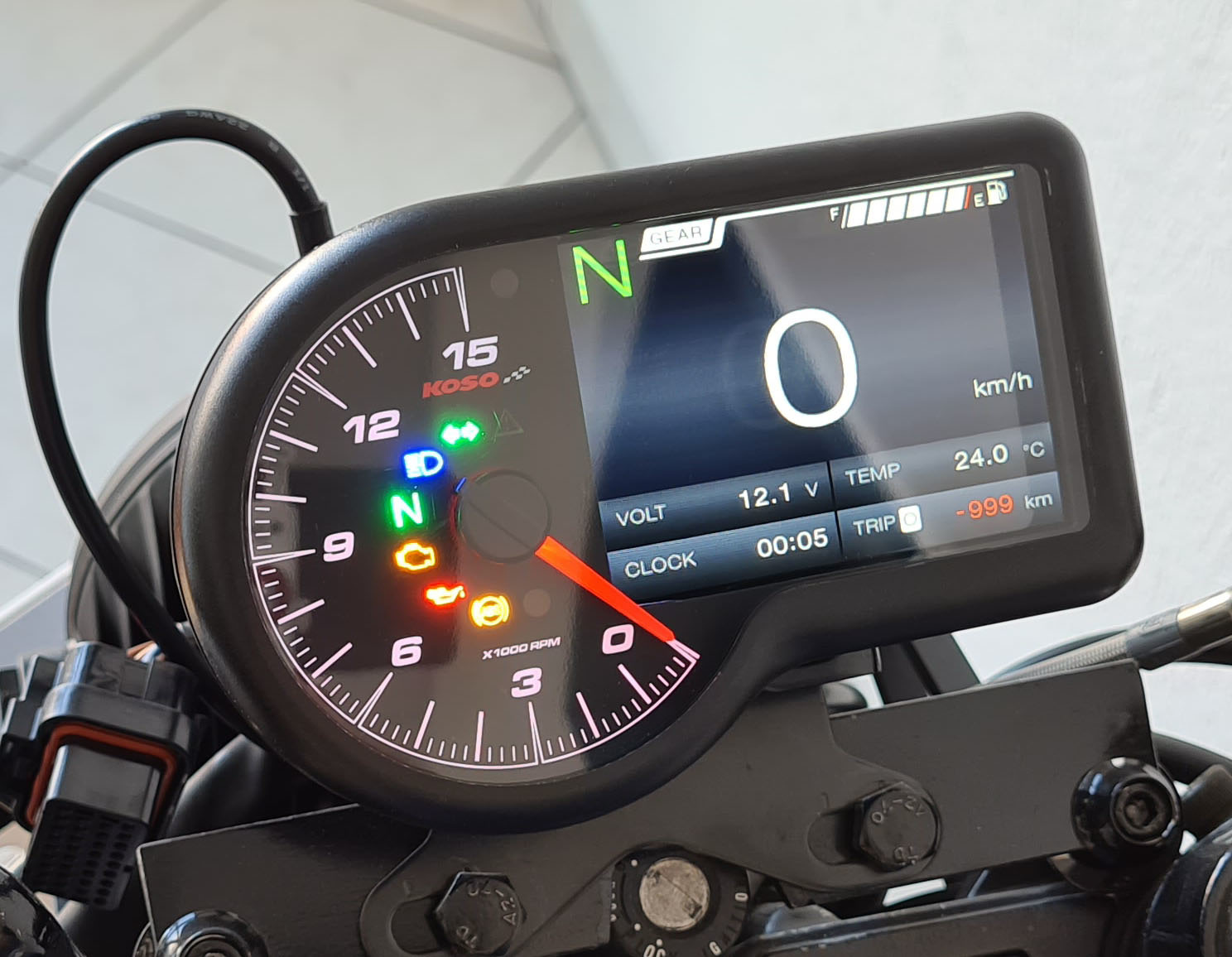

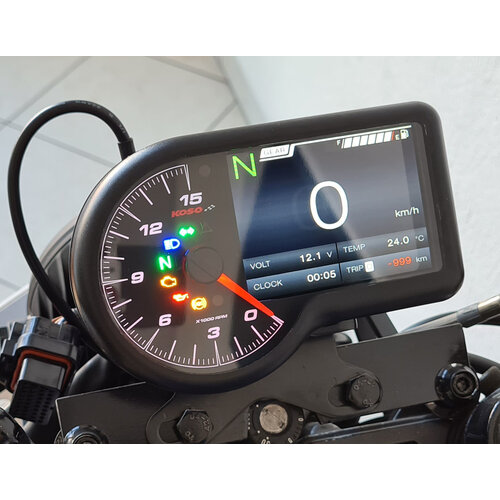

It features a modern TFT screen to display
your information with the day and night
brightness adjustability and also has 5 different colours to choose from.
The RX-3 instrument turns every ride into a
fun trip!

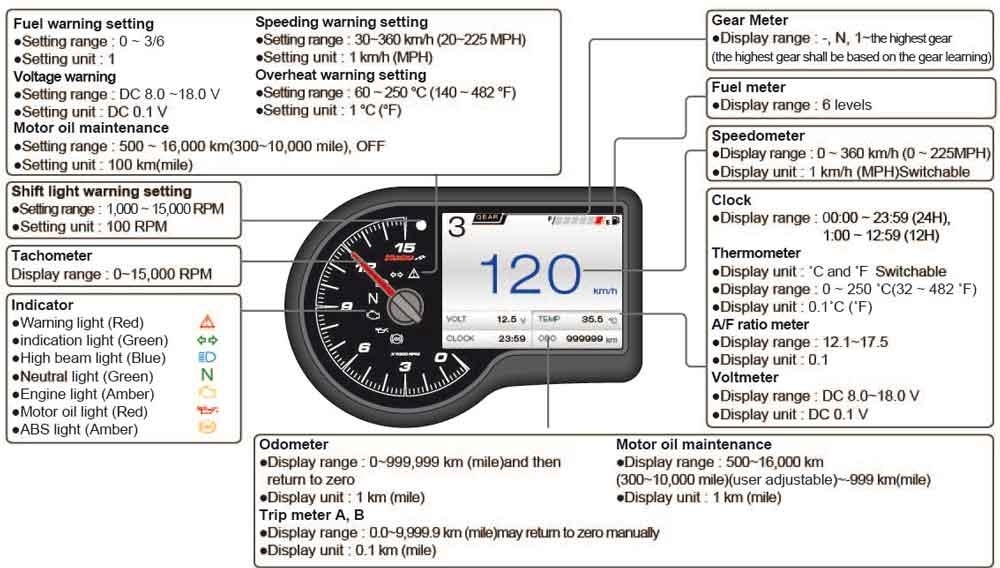

| Speedometer | Display range：0 ~ 360 km/h (0 ~ 225 MPH) |
| Display unit： 1 km/h (MPH) Switchable | |
| Odometer | Display range：0 ~ 999,999 km (mile)and then return to zero |
| Display unit：1 km (mile) | |
| Trip meter A、B | Display range： 0~9,999.9 km (mile), may return to zero manually |
| Display unit：0.1km (mile) | |
| Motor oil maintenance millage | Display range：500 ~ 16,000 km(300~10,000 mile),OFF |
| Setting unit : 100 km(mile) | |
| Speeding warning setting | Setting range : 30~360 km/h (20~225 MPH), when setting value is reach or above, warning light will lit. |
| Setting unit : 1 km/h (MPH) | |
| Max. speed record | Display range : 0 ~ 360 km/h (0 ~ 225 MPH) |
| Display unit : 1 km/h (MPH) | |
| Circumference | Setting range : 300~2,500 mm |
| Setting unit : 1 mm | |
| Sensitive point | Setting range : 1~40 P |
| Setting unit : 1 P | |
| Gear Meter(Learning) | Display range : -, N, 1~the highest gear, (the highest gear shall be based on the gear learning) |
| Max. Gear record | Display range : -, N, 1~the highest gear (the highest gear shall be based on the gear learning) |
| Tachometer | Display range : 0~15,000 RPM |
| Shift light warning setting | Display range : Steady, Fast Flash |
| Setting range : 1,000~15,000 RPM | |
| Setting unit : 100 RPM | |
| Max. rotating speed | Display range : 0~15,000 RPM (At the MAX screen, the pointer shows the highest speed recorded so far.) |
| The RPM input signal number setting | Setting range : 0.5,1.0~24.0 |
| The RPM input pulse | Setting range : Low-Act, High-Act |
| Thermometer | Display range : 0 ~ 250.0 ˚C (32.0 ~ 482.0 ˚F) |
| Display unit : 0.1 °C (°F) | |
| Overheat warning setting | Setting range : 60 ~ 250 °C (140 ~ 482 °F), when setting value is reach or above, warning light will lit. |
| Setting unit : 1 °C (°F) | |
| Max. temperature record | Display range : 0 ~ 250 ˚C (32.0 ~ 482 ˚F) |
| A/F ratio meter | Display range : 12.1~17.5 |
| Display unit : 0.1 | |
| Fuel meter | Display range : 6 levels |
| Display unit : 1 level(16.6 %) | |
| Setting range : 100 Ω, 250 Ω, 270 Ω,390 Ω, 510 Ω, 1200 Ω, SW, learning mode,OFF | |
| Fuel warning setting | Setting range : 0 ~ 3/6, when setting value is reach or below, warning light will lit. |
| Setting unit : 1 | |
| Clock | Setting range : 00:00~23:59 (24H)、01:00~12:59 (12H) |
| Voltmeter | Display range : DC 8.0 ~ 18.0 V |
| Display unit : DC 0.1 V | |
| Low voltage warning | Setting range : DC 8.0~13.0 V, when setting value is reach or below, warning light will lit. |
| Setting unit : DC 0.1 V | |
| High voltage warning | Setting range : DC 13.1~18.0 V, when setting value is reach or above, warning light will lit. |
| Setting unit : DC 0.1 V | |
| Target speed | Setting range : 30 ~ 360 km/h (20 ~ 225 MPH) |
| Setting unit : 5 km/h (MPH) | |
| Target distance | Setting range : 50 ~ 1,500 m (1/32 ~ 30/32 mile) |
| Setting unit : 50 m (1/32 mile) | |
| Top speed | Display range |
| Speed : 0 ~ 360 km/h (0 ~ 225 MPH) | |
| Distance : 0 ~ 999 m (0~3,280 feet) | |
| Rotating speed : 0 ~ 15,000 RPM | |
| Time : 0 ~ 9 : 59”99 | |
| Background display | Setting range : Auto(automatically switch according to the light : day mode display for the bright environment and Night mode display for the dark environment), Day mode, Night mode. |
| Back light brightness(Day) | Setting range : 3/5~ 5/5(Brightest) |
| Setting unit : 1/5 | |
| Back light brightness (Night) | Setting range : 1/5(Darkest) ~ 5/5(Brightest) |
| Setting unit : 1/5 | |
| Back light color | Setting range : white, red, orange,green,blue, Loop switch |
| Unit | Speed unit : km/h , MPH |
| Temperature unit : ˚C (Celsius) and ˚F (Fahrenheit) | |
| Voltage | DC 12 V |
| Operating temperature | -10 ~ +60 °C |
| Specification | JIS D 0203 (S2) |

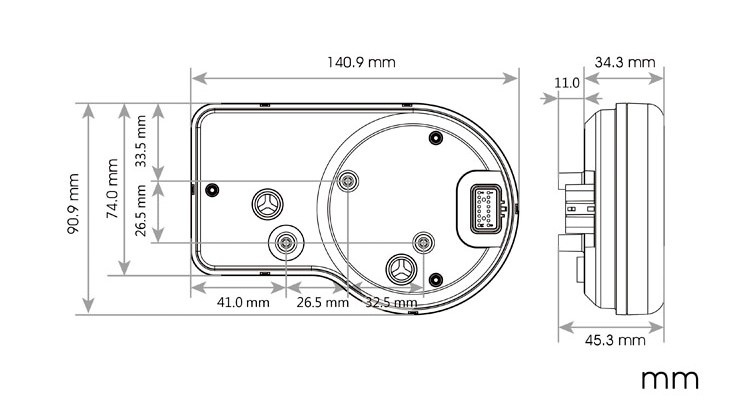

| Meter Size | 140.9 x 90.9 x 45.3 mm |
| Meter Weight | Around 188 g |
| Indicator light | Indication light (Green), High beam light (Blue), Neutral light (Green), Engine light (Amber), Motor oil light (Red), ABS light (Amber) |
| Composite warning light | OFF, Fast Flash,Steady, Slow Flash/(Red) |
| Over-running light + light sensing | Fast Flash, Steady/(Red) |
