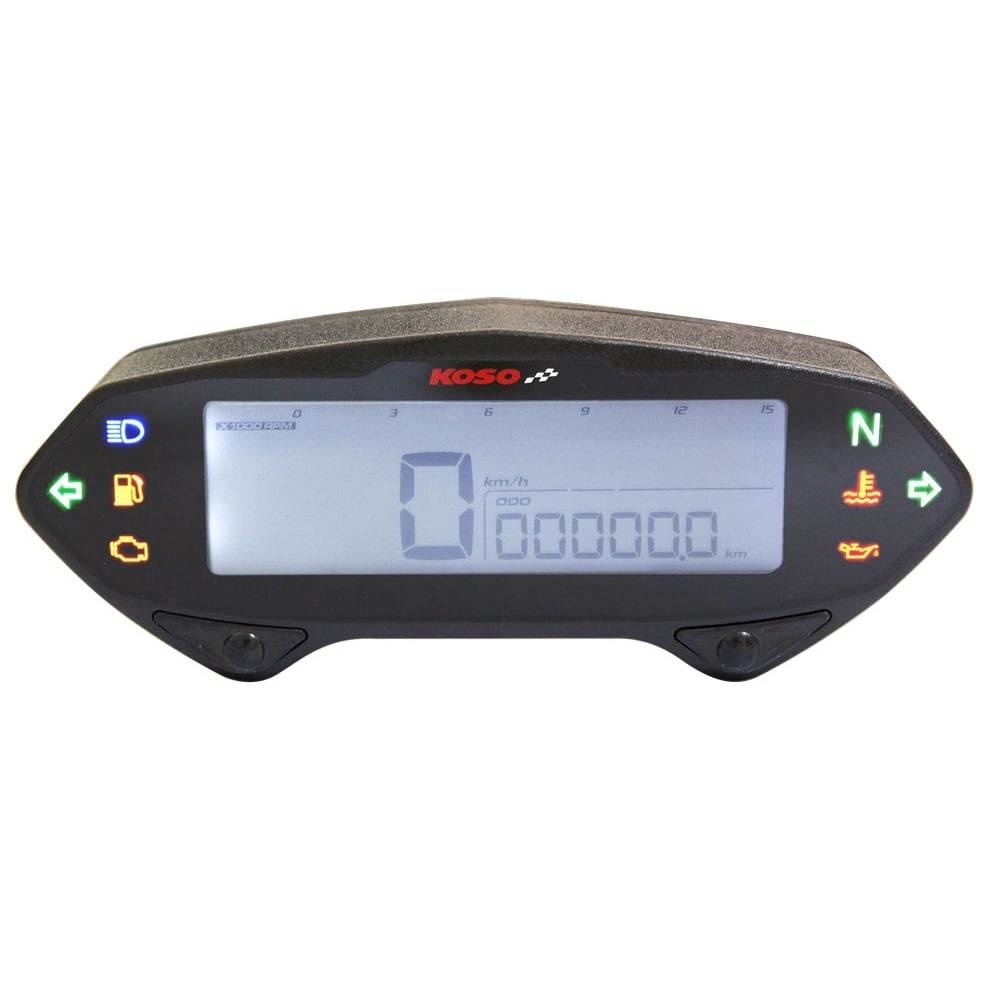

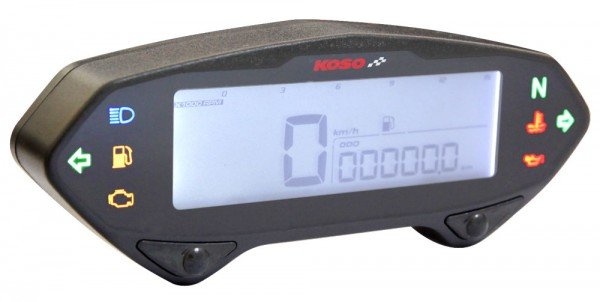

Digital cockpit DB01RN, speedo/tachometer, ABE
KOSO digital Multifunction Cockpit DB 01RN with 4 indicator lights, blue background illumination, Speedometer / Tachometer / odo / trip / fuel gauge. Universal sensor (without magnets) and bracket are included. Delivered with the English manual. Homologated.
Like to read more? [click here] for the manual.
| Speedometer | Display range: 0~360 km/h (0~223 MPH) | | | Display unit: km/h & MPH for alternative | | Display internal | <0.5 second | | Odometer | Display range: 0~99999.9 km (mile), reset automatically after 99999.9 km (mile). | | | Display unit: 0.1 km (mile) | | Trip meter A/B | Display range: 0~999.9 km (mile), reset automatically after 999.9 km (mile) | | | Display unit: 0.1 km (mile) | | Tyre circumference | Setting range: 300~2,500 mm | | | Setting unit: 1 mm | | | Sensitive point: 1~60 | | Tachometer | Display range: 0~15,000 RPM | | | Display unit: 500 RPM (0~10,000 RPM) | | | Display unit: 250 RPM (10,000~15,000 RPM) | | Display internal | <0.5 second | | Stroke / piston setting | 2 Stroke: 1, 2, 3, 4 pistons | | | 4 Stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons | | Fuel meter | Display range: 5 levels | | | Display unit: Each level represents 20 % | | | Setting range: 100Ω ．510Ω no display | | Insufficient fuel warning | The fuel symbol will flash when the fuel is less than 20 % | | Effective voltage | DC12V | | Effective temperature range | -10~+60℃ | | Meter standard | JIS D 0203 S2 | | Meter size | 119.8 X 44 X 49.5 mm | | Meter weight | Around 90 g | | Indicator light color | Neutral(Green)．High beam(Blue)． Repeater(Green)． Oil(Red) |
|
