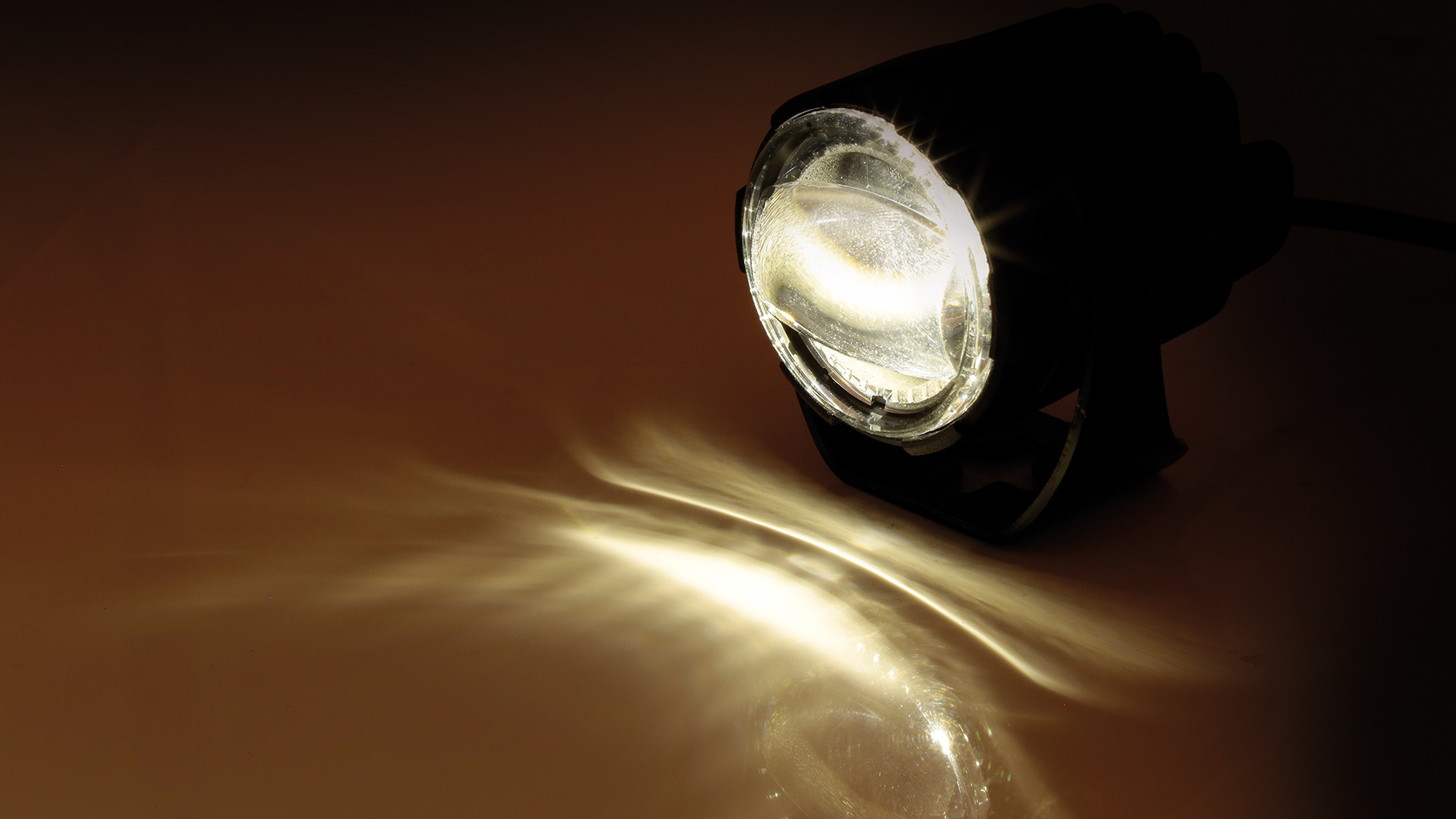

The HIGHSIDER FT13- FOG is a powerful fog light in a matt black aluminium housing with a round lens.
The LED technology and the insert used produce a bright light for optimal perception.
E- checked: ECE R19, F3

dimensions:
diameter: 55 mm
diameter lens: 44 mm
distance between the mounting holes: 56 mm
mounting holes on the side: 63.8 mm
housing depth: 70 mm
Depth from mounting point: 62 mm
Cable length to E-box: 590 mm
>br/> Material housing: Aluminium
Material holder: Steel
>br/> Dimensions of the box:
Height: 11 mm
Width: 44.5 mm
Depth: 12 mm
Weight: 0.3 Kg

Shot:
red = low beam (+)
black = mass (-)

Scope of delivery:
1 piece
1x screw
1x washer
1x nut
1x E-box

Notes:
- EMC ready
- The headlamp must never be connected without the supplied black electronic box (voltage control).
- The E-box does NOT fit COMET or SATELLITE models
