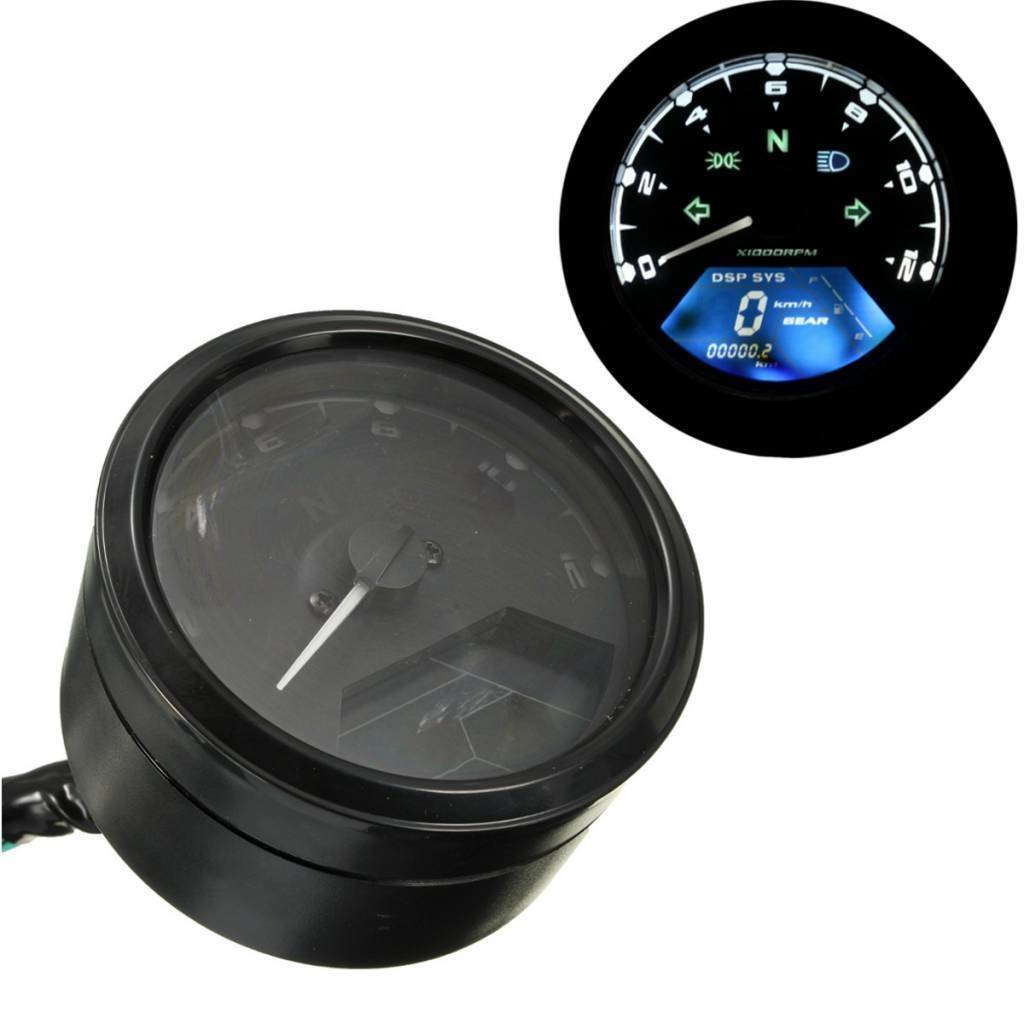

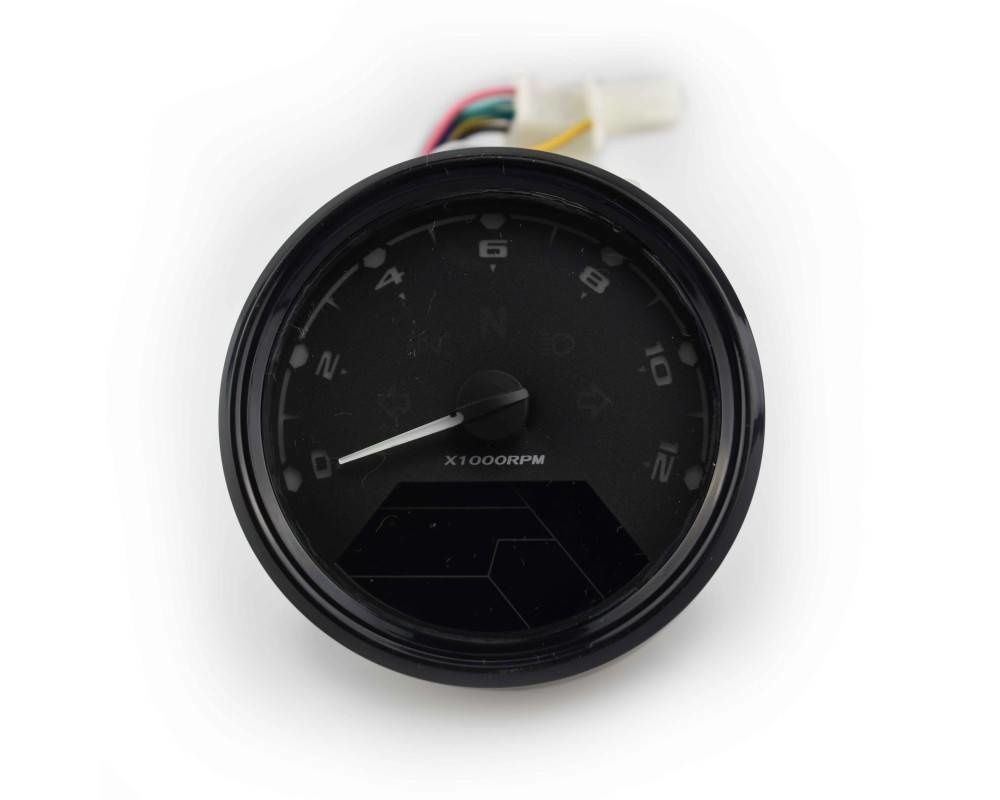

Digital Speedo 12.000 RPM. Great multifunctional speedo with a nice diameter as well. Super complete and really good finish.

Sizes: 9.5 x 9.5 x 7 cm

• Fits on all wheel diameters
• Fits both on 2-stroke and 4-stroke
• Speed Display (kmh/mph), max display 199
• 12,000 r/min RPM display
• ODO distance, max display 99999.9
• Trip distance, max display 999.9, trip distance clears
• Fuel Level Table
• Over speed warning light
• Left turn signal, right turn signal, headlight indicator
• Gear indicator: N, 1, 2, 3, 4, 5, 6
• Show time (hours & minutes)
• Waterproof, shockproof, anti-lightning
• Operating temperature: -20 ° C ~ 70 ° C
• Storage temperature: -30 ° C ~ 80 ° C
• Power voltage: 12V

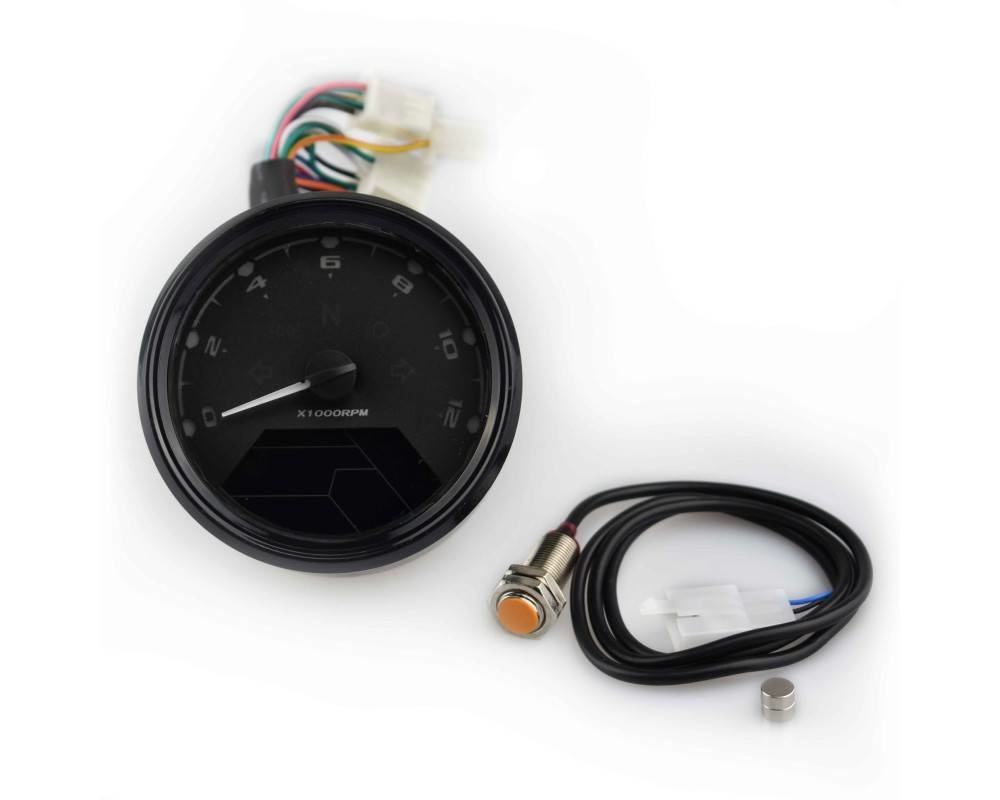

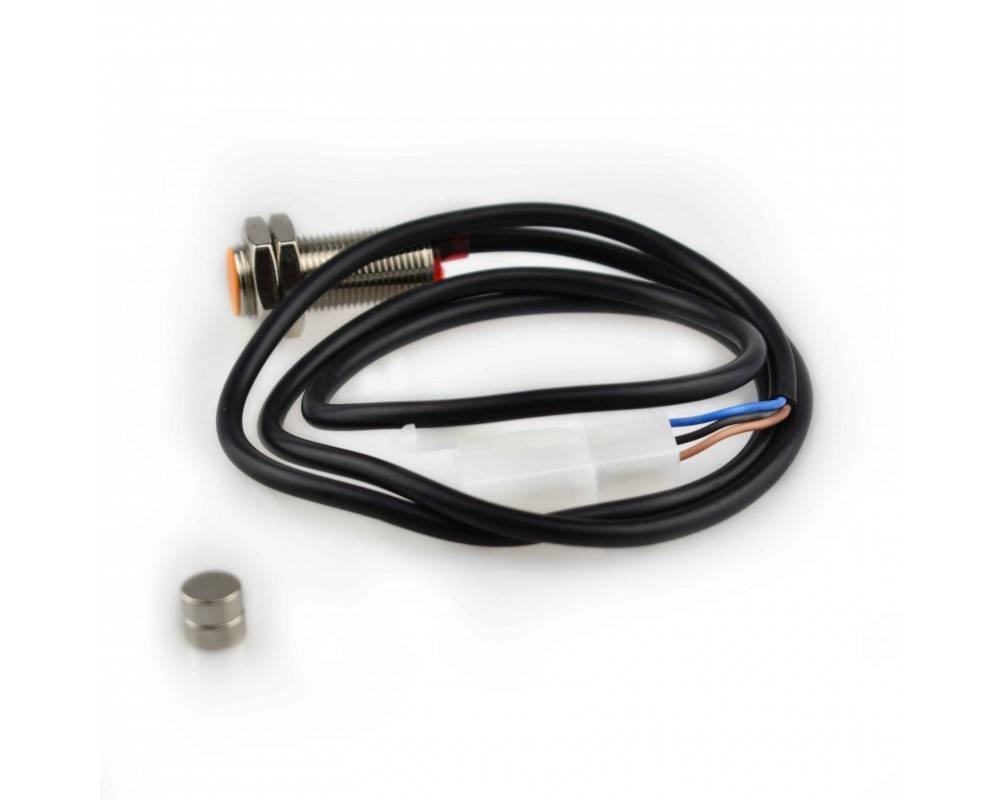

No friction or contact between the hall probe and the magnet.

Engine rotate speed comes from the ignition signal. The sensor wire is normally contacted with the positive side of the magnet or directly wired on the rectifier.

Oil Mass can be wired on the original sensor.

Do NOT wire on the headlight if it had been modified as the HID Xenon light. Instead, connect it on the headlight control wiring.

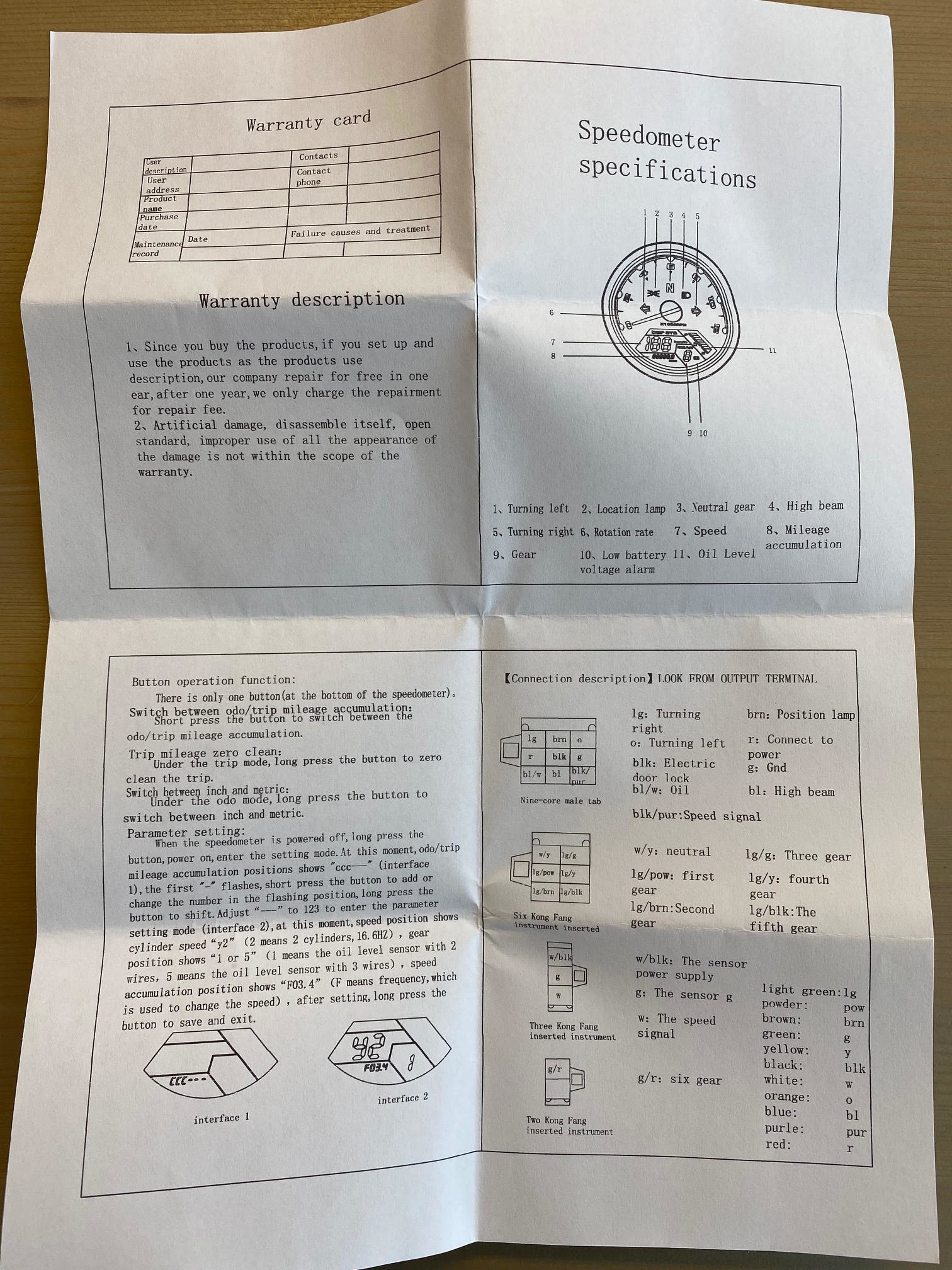

Connection diagram:

Green = Earth

Red = Constant +

Orange = Indicator Left

Light Blue = indicator light Right

Dark Blue = High Beam

Yellow / Black = RPM

Green / Red = Neutral

Pink = 1st gear

Blue / Red = 2nd gear

Black / Green = 3rd gear

Yellow / Red = 4th gear

Yellow / White = 5th gear

Green / White = 6th gear

Blue / White = Tank
