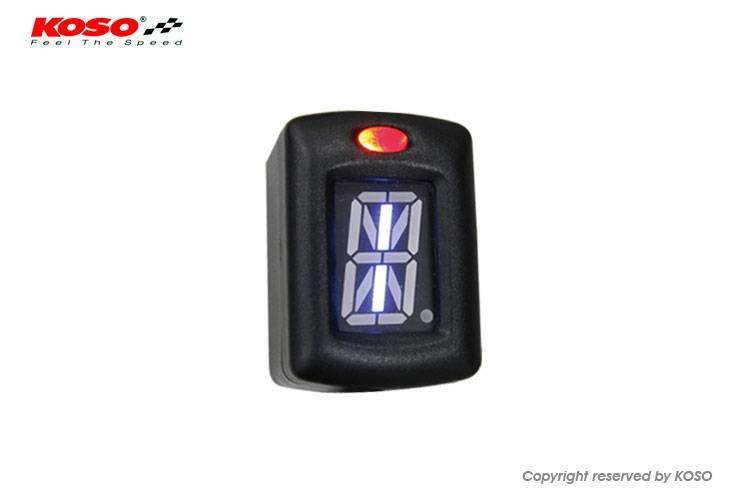

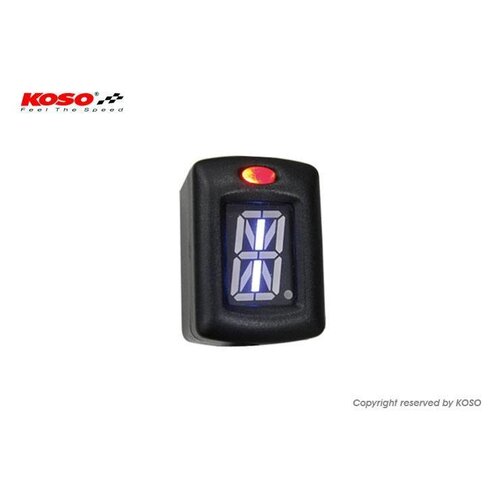

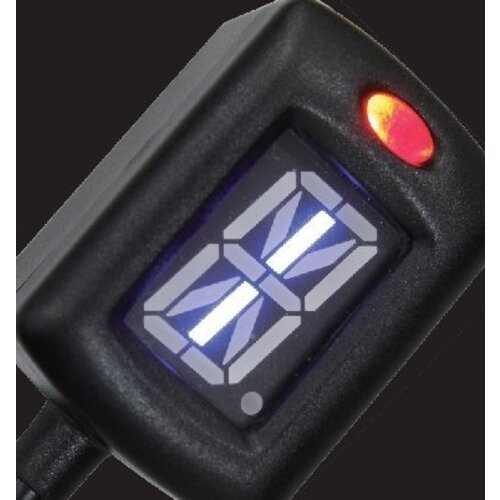

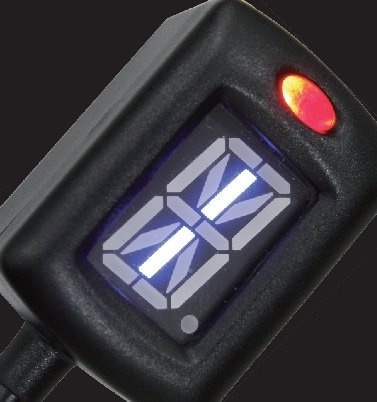

Mini Style Gear meter with shift light
Our new gear indicator works at the current speed and speed. This guarantees a simple installation and operation of this instrument. In addition, a switching light is integrated, which indicates the optimal time to switch.
Note: for correct operation of the gear indicator, the output signals in your vehicle are according to the technical requirements of the input signals on the gear indicator.
| Gear indicator | Display: N, 1, 2, 3, 4, 5, 6 |
| Voltage | DC 12V |
| Required input signals | Rotation speed: 5V square-wave signal Speed: 5V square-wave signal Neutral switch: ground |
| Effective temperature | -10 to + 60°C |
| Standard meter | JIS D 0203 S2 |

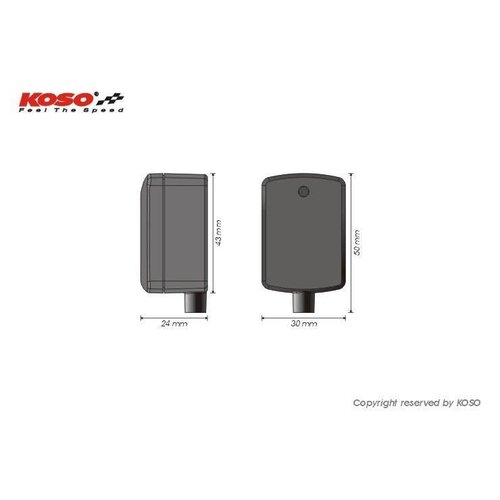

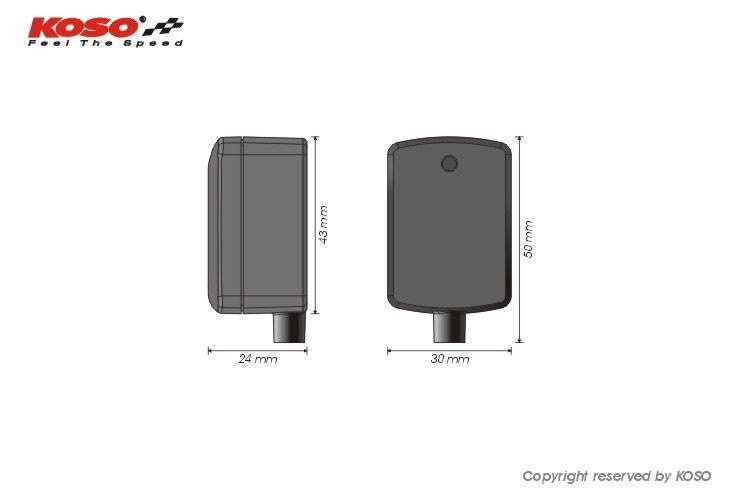

| Dimensions | 30 x 50 x 24 mm (W x L x H) |
| Weight | ~ 40g |
