€343,95
✔ Disponible en 4-7 días hábiles
Descripción

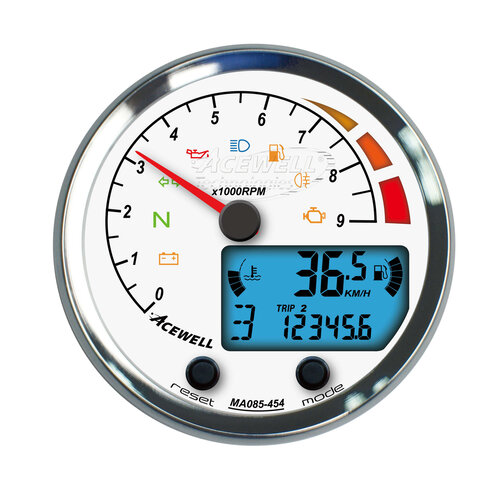

TheAcewellmotorcycle speedometer fromthe ACE-MA085-X54 seriesisaround instrumentwith Classic N needle speed display and digital display show and other functions:

  • Needle speed meter with shift lightning
  • digitalspeedometerup to 399.9 km / h
  • Digitaldisplay of
    • Trip meters TRIP 1 + 2
    • Total Mileage
    • Digital speed display up to 19,900 rpm
    • Displayaverage and maximum speed
    • Displayaverage and maximum speed
    • Temperature - additionallystoragereached maximum temperature
    • gear indicator
    • fuel gauge
    • time of day
    • voltmeter
    • driving time
    • Hour meter
    • AdjustableswitchingwarningwithLED display
  • Gear indicator is taken over speed and speedometer and can be switched off via OFF mode
  • Schaltblitz with 3 different colors
  • Scroll function of the second display line of 1-20 seconds adjustable or OFF mode
  • 8 LED indicator lights
  • Gear display up to 8 gears , Neutral, Reverse as off mode possible
  • 2 temperature displays for oil, water or outside temperature with additional warning LED Display for overheating - sensors included!
  • Digital speed display up to 19,900 rpm
  • Adjustable tank tank resistance range from 0 to 990 ohm, or OFF mode
  • Battery monitoring adjustable from 11.0 to 15.0 volts, reports over / under supply
  • Maintenance reminder function, can be entered in hours or KM
  • When new,thetotal mileage, the first 30 km isfreelyadjustable - thennolonger
  • Universal wheel circumference adjustment range: 1-3999mm
  • Decrease in the speed of the original sensor possible.
  • The end user is able to display the speed indicator with or without comma.
  • Background color from the display in 3 colors selectable. (Blue, green, amber)
  • Water resistant IP 67 and extremely resistant to water, vibration and impact (vibrations 8G, shock 100G tested)
  • E-certified
  • ABE

delivery

  • Speed sensor with magnet
  • Temperature sensor (M10x1)
  • Air temperature sensor
  • mounting material
  • Harness with watertight plugs and heat shrink tubing
  • German installation instructions with circuit diagram
  • ABE

specifications

featuresspecificationsintervalaccuracy
Needle Tachometer250-6,000-15,000 umin *250 umin
Digitaltachometer10-19,900 umin10 umin
shift warning100-19,900 umin100 umin
speedometer2.4-399.9 km / h0.1 km / h± 1%
Digitaltemperaturedisplay T1+ 50 ° C - + 180 ° C
Max. Temperature+ 50 ° C - + 180 ° C
Bar fuel gauge+/- 0-990 ohms or off7 bars
Day kilometers 1 & 20 - 9999,9 Km0,1 Km± 0.1%
total distance0 - 999999 Km1 km± 0.1%
top speed2.4-399.9 km / h0.1 km / h
Average speed2.4-399.9 km / h0.1 km / h
Travel time RT0: 00'00 '' - 99: 59'59 ''1 second± PPM
Total timeTT0:00 '- 9999: 59'1 minute± 50PPM
time of day0: 00'00 '' - 23: 59'59 ''1 second / 1 minute± 50PPM
voltmeter8.0-25.0 volts0.1 volt





Supply voltage :12VDC voltage
Tachometer input signalCDI, transistor ignitionorignition coil
Speed sensor :Reed orHall sensor
Temperature SensorThermo-sensor P 1/8 "
Wheel circumference adjustment :1mm - 3999mm ( 1mm increments )
Operating temperature :-20 ° C. - + 80 ° C. (Inside thehousing)
Storage temperature :-30 ° C. - + 90 ° C. (Inside thehousing)
* Needle speed displayselectable ! seetable





Dimensions :

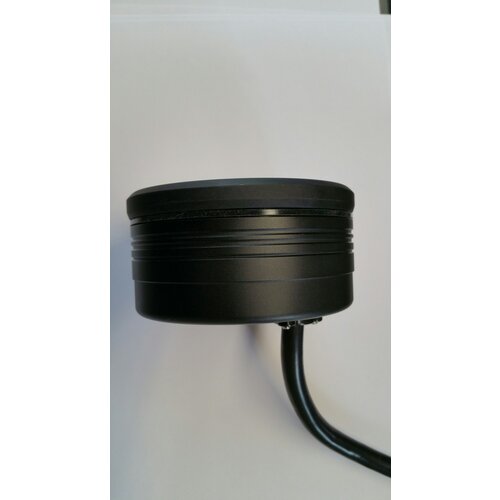

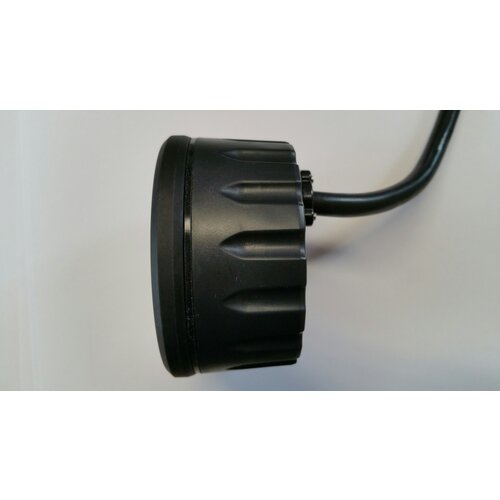

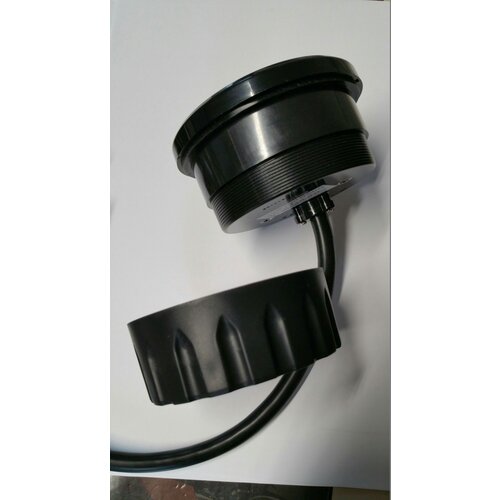

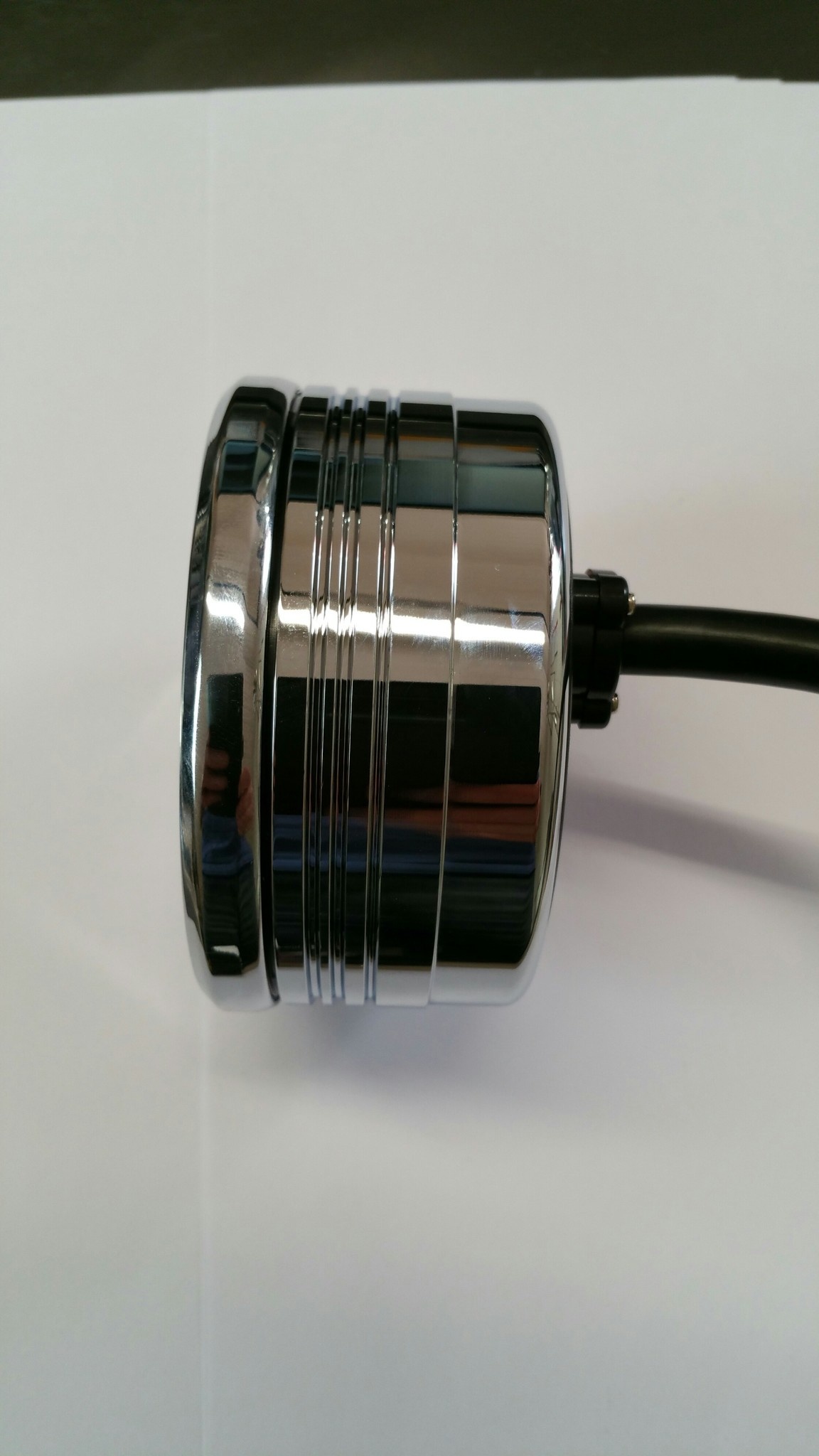

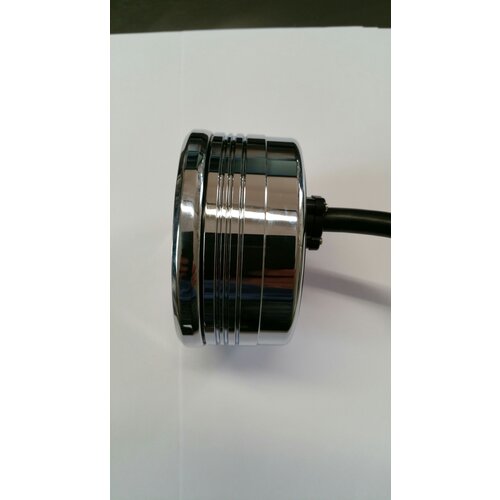

Outside diameter, bore and depth: 95.0 mm Ø, 85.0 mm Ø and 56.1mm



Note for BMW customers:

For a simple conversion we recommend the following items:

ACE-TA7: electronic speedometer cable for 2V boxers

ACE-IVR03 Led Inverter, needed to charge the battery.
