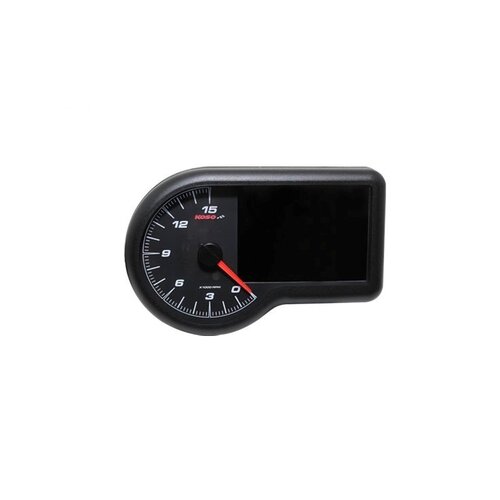

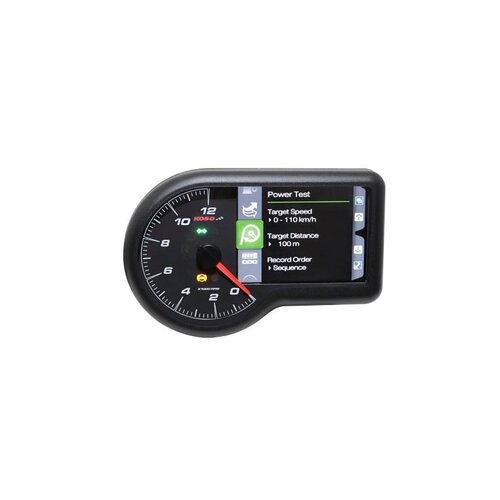

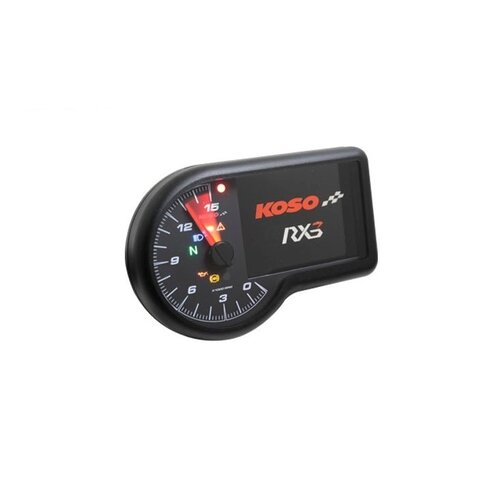

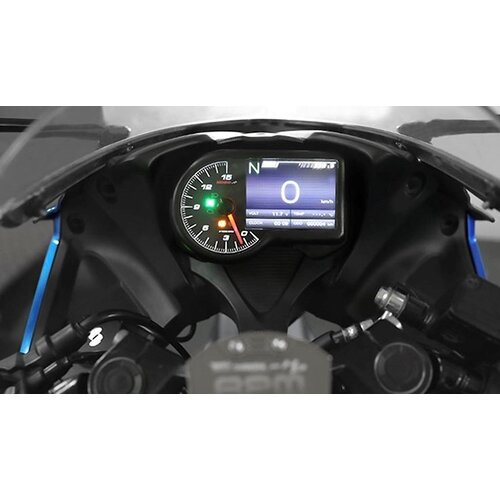

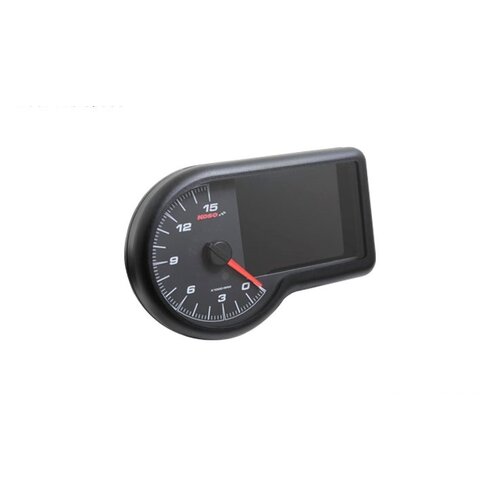

RX3 Multi-Function Speedo/tachometer

thubmnail
thubmnail
thubmnail
thubmnail
thubmnail
thubmnail
thubmnail
thubmnail
Sale
€399,95
€429,95
✔ Shipped in 3-5 business days
Bekijk productinformatie >
    Motorcycles United | Café Racer parts for the Builders logo
    Wij zijn er voor jou!
    Stel je vraag >
    Productinformatie
    Artikelcode: 27-0163
    EAN-code: 7423543795760

    All the functions you need like speedometer, tachometer, odometer and trip, as well as the gear position are already integrated in the RX-3. Target distance and target speed ensure that the information,
    including the condition of your vehicle, is always available to you.

    It features a modern TFT screen to display
    your information with the day and night
    brightness adjustability and also has 5 different colours to choose from.
    The RX-3 instrument turns every ride into a
    fun trip!

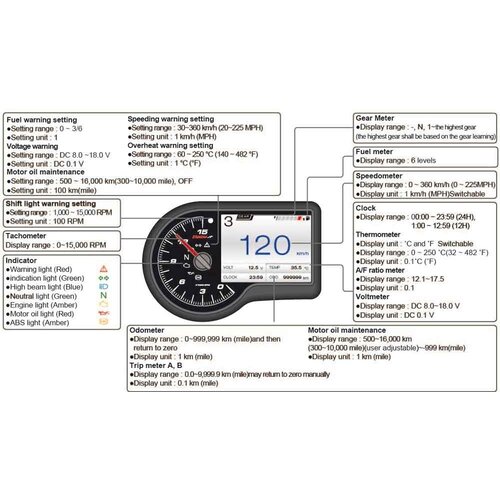

    SpeedometerDisplay range0 ~ 360 km/h (0 ~ 225 MPH)
     Display unit 1 km/h (MPH) Switchable
    OdometerDisplay range0 ~ 999,999 km (mile)and then return to zero
     Display unit1 km (mile)
    Trip meter ABDisplay range 0~9,999.9 km (mile), may return to zero manually
     Display unit0.1km (mile)
    Motor oil maintenance millageDisplay range500 ~ 16,000 km(300~10,000 mile),OFF
     Setting unit : 100 km(mile)
    Speeding warning settingSetting range : 30~360 km/h (20~225 MPH), when setting value is reach or above, warning light will lit.
     Setting unit : 1 km/h (MPH)
    Max. speed recordDisplay range : 0 ~ 360 km/h (0 ~ 225 MPH)
     Display unit : 1 km/h (MPH)
    CircumferenceSetting range : 300~2,500 mm
     Setting unit : 1 mm
    Sensitive pointSetting range : 1~40 P
     Setting unit : 1 P
    Gear Meter(Learning)Display range : -, N, 1~the highest gear, (the highest gear shall be based on the gear learning)
    Max. Gear recordDisplay range : -, N, 1~the highest gear (the highest gear shall be based on the gear learning)
    TachometerDisplay range : 0~15,000 RPM
    Shift light warning settingDisplay range : Steady, Fast Flash
     Setting range : 1,000~15,000 RPM
     Setting unit : 100 RPM
    Max. rotating speedDisplay range : 0~15,000 RPM (At the MAX screen, the pointer shows the highest speed recorded so far.)
    The RPM input signal number settingSetting range : 0.5,1.0~24.0
    The RPM input pulseSetting range : Low-Act, High-Act
    ThermometerDisplay range : 0 ~ 250.0 ˚C (32.0 ~ 482.0 ˚F)
     Display unit : 0.1 °C (°F)
    Overheat warning settingSetting range : 60 ~ 250 °C (140 ~ 482 °F), when setting value is reach or above, warning light will lit.
     Setting unit : 1 °C (°F)
    Max. temperature recordDisplay range : 0 ~ 250 ˚C (32.0 ~ 482 ˚F)
    A/F ratio meterDisplay range : 12.1~17.5
     Display unit : 0.1
    Fuel meterDisplay range : 6 levels
     Display unit : 1 level(16.6 %)
     Setting range : 100 Ω, 250 Ω, 270 Ω,390 Ω, 510 Ω, 1200 Ω, SW, learning mode,OFF
    Fuel warning settingSetting range : 0 ~ 3/6, when setting value is reach or below, warning light will lit.
     Setting unit : 1
    ClockSetting range : 00:00~23:59 (24H)01:00~12:59 (12H)
    VoltmeterDisplay range : DC 8.0 ~ 18.0 V
     Display unit : DC 0.1 V
    Low voltage warningSetting range : DC 8.0~13.0 V, when setting value is reach or below, warning light will lit.
     Setting unit : DC 0.1 V
    High voltage warningSetting range : DC 13.1~18.0 V, when setting value is reach or above, warning light will lit.
     Setting unit : DC 0.1 V
    Target speedSetting range : 30 ~ 360 km/h (20 ~ 225 MPH)
     Setting unit : 5 km/h (MPH)
    Target distanceSetting range : 50 ~ 1,500 m (1/32 ~ 30/32 mile)
     Setting unit : 50 m (1/32 mile)
    Top speedDisplay range
     Speed : 0 ~ 360 km/h (0 ~ 225 MPH)
     Distance : 0 ~ 999 m (0~3,280 feet)
     Rotating speed : 0 ~ 15,000 RPM
     Time : 0 ~ 9 : 59”99
    Background displaySetting range : Auto(automatically switch according to the light : day mode display for the bright environment and Night mode display for the dark environment), Day mode, Night mode.
    Back light brightness(Day)Setting range : 3/5~ 5/5(Brightest)
     Setting unit : 1/5
    Back light brightness (Night)Setting range : 1/5(Darkest) ~ 5/5(Brightest)
     Setting unit : 1/5
    Back light colorSetting range : white, red, orange,green,blue, Loop switch
    UnitSpeed unit : km/h , MPH
     Temperature unit : ˚C (Celsius) and ˚F (Fahrenheit)
    VoltageDC 12 V
    Operating temperature-10 ~ +60 °C
    SpecificationJIS D 0203 (S2)

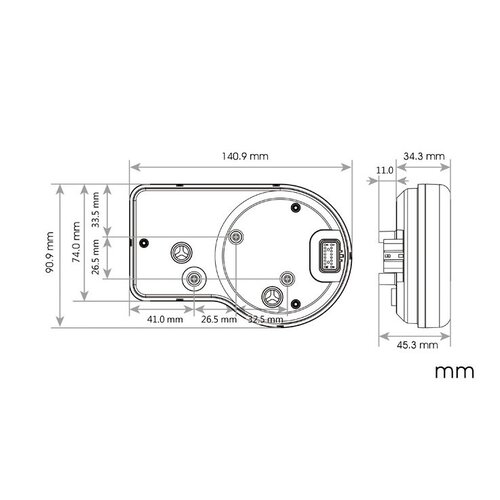

    Meter Size140.9 x 90.9 x 45.3 mm
    Meter WeightAround 188 g
    Indicator lightIndication light (Green), High beam light (Blue), Neutral light (Green), Engine light (Amber), Motor oil light (Red), ABS light (Amber)
    Composite warning lightOFF, Fast Flash,Steady, Slow Flash/(Red)
    Over-running light + light sensingFast Flash, Steady/(Red)
    Read more
