Motogadget mo.view bar adapter BMW mo.blaze disc/cone

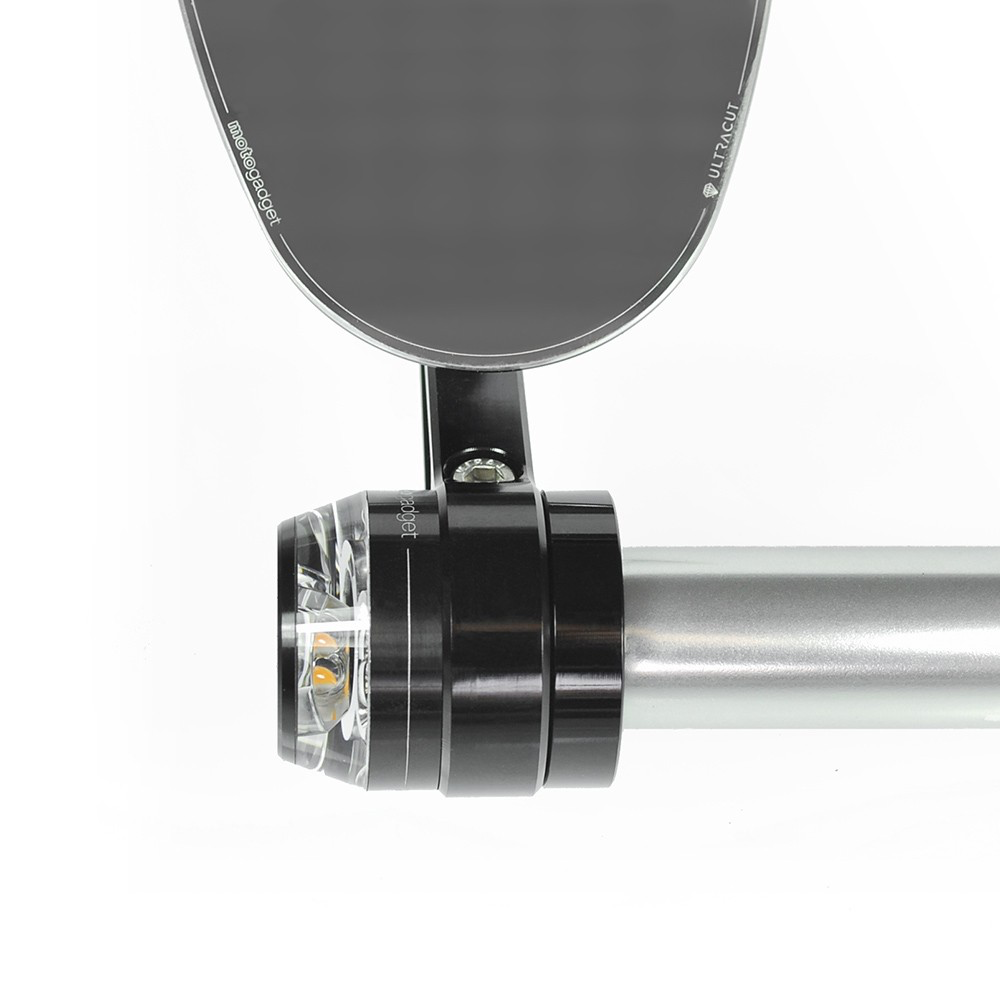

The mo.view bar adapter BMW disc/cone allows the mounting of all mo.view handlebar end mirrors on BMW handlebars with M12 thread, in combination with the mo.blaze handlebar end indicators, without moving the grips and controls on the handlebars.
It creates a clamping surface for the handlebar end mirror outside the steering tube. Whether for the mo.view blade, mo.view spy, mo.view flight, mo.view cafe, mo.view road, mo.view pace, mo.view cruise or mo.view street.

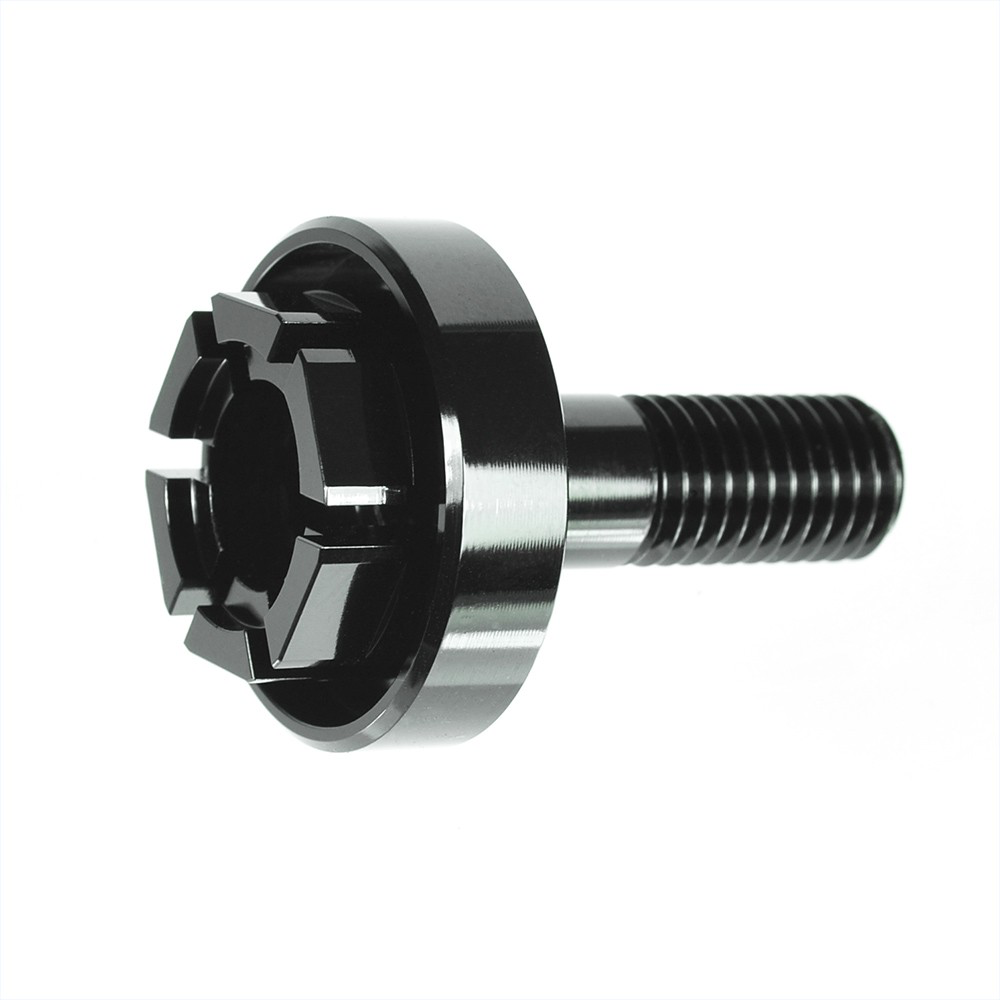

It is CNC machined from billet aluminum and black anodized.

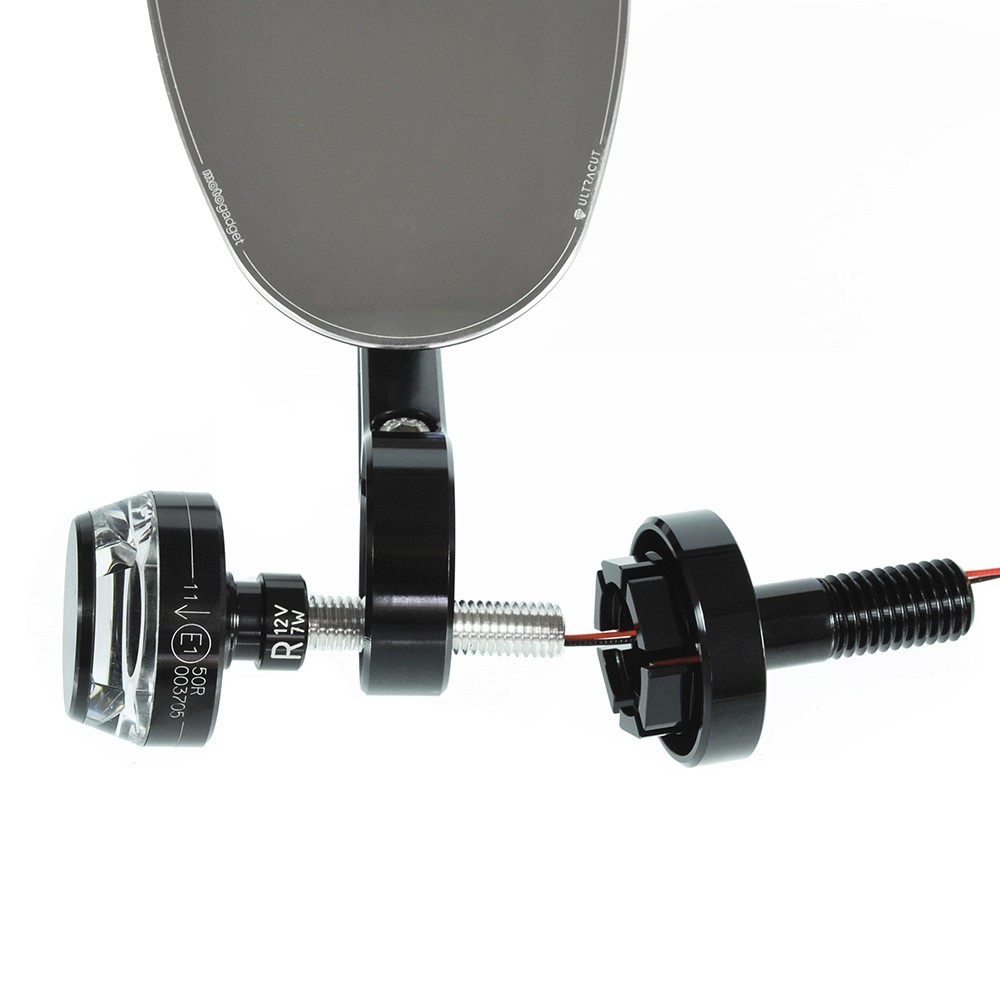

The installation in the handlebar end is done by screwing the M12 thread into the handlebar. Then the handlebar end mirror is clamped on the adapter. This also clamps the handlebar end indicator in the adapter.

The mo.view bar adapter BMW disc/cone comes with two thread pieces for the left and right side of the handlebar. They fit perfectly to our grips mo.grip.

The mounting is done directly in the thread M12 of the BMW handlebar.

Dimensions

Fits all BMW handlebars with M12 thread
Total length: approx. 50 mm
Width of clamping surface for mirror: 8 mm, fits all mo.view handlebar end mirrors
Diameter of clamping surface: 1 inch, fits all mo.view handlebar end mirrors
Weight (1 piece): approx. 20 g

Scope of delivery
2 x mo.view bar adapter BMW disc/cone , manual
