Digital harness version C
All electronic boxes on the market reduce the number of required cables on a bike. They make installations simpler and fault finding easier. However, it's surprising how much wires remain on the bike, which results in a typical installation time between 10 and 20 hours.

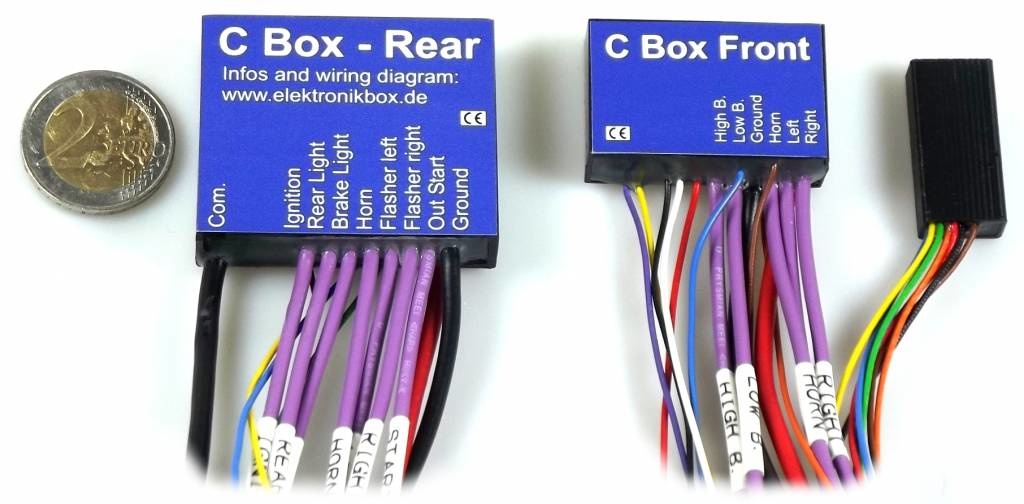

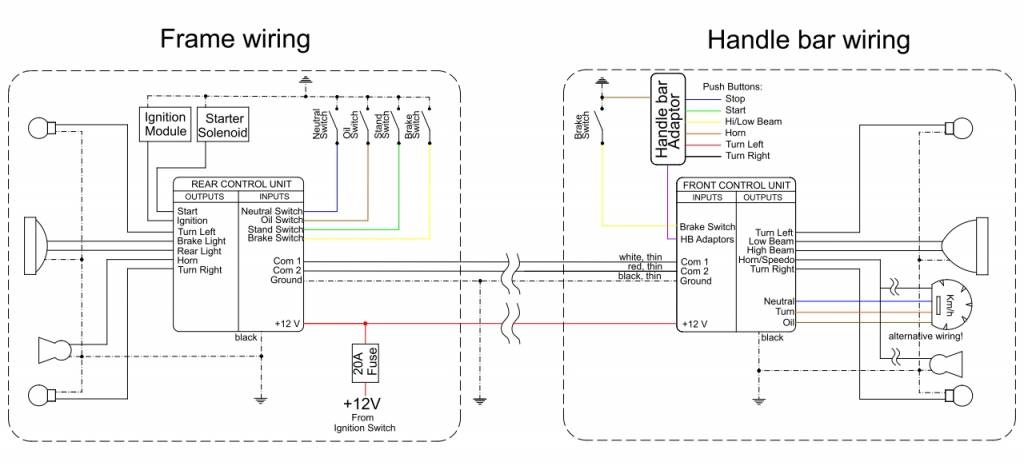

The digital harness C (C standing for communication) is in charge of the bike controls through push buttons. This harness is universal and contains 2 small control boxes as well as one or two handlebar adapters. The control boxes communicate with each other through a thin serial bus cable. The power cables are wired directly from the nearest box. This reduces the number of cables needed on your motorcycle, as well as the time of the installation of the harness.
Dimensions: | Handlebar unit: 40 mm length x 12,5 mm wide x 25 mm height Frame unit: 50 mm x 42 mm x 12 mm, Handlebar adaptor 24 mm x 10 mm x 8 mm |
Body material: | shock resistant ABS plastic, water resistant |
Case Color: | Black |
Connections: | 0,1 mm3 for inputs, 1 mm3 for power outputs, 20 cm length |
Power consumption in operation: | 14 mA |
Maximum temperature: | 80 degree Celsius |
| Maximum output current: | 5 Ampere for headlight, 3 Ampere for all other outputs |
Input voltage range: | 7 - 18 Volt |
Maximum current of the 12V ignition connector: | 20 Ampere |
