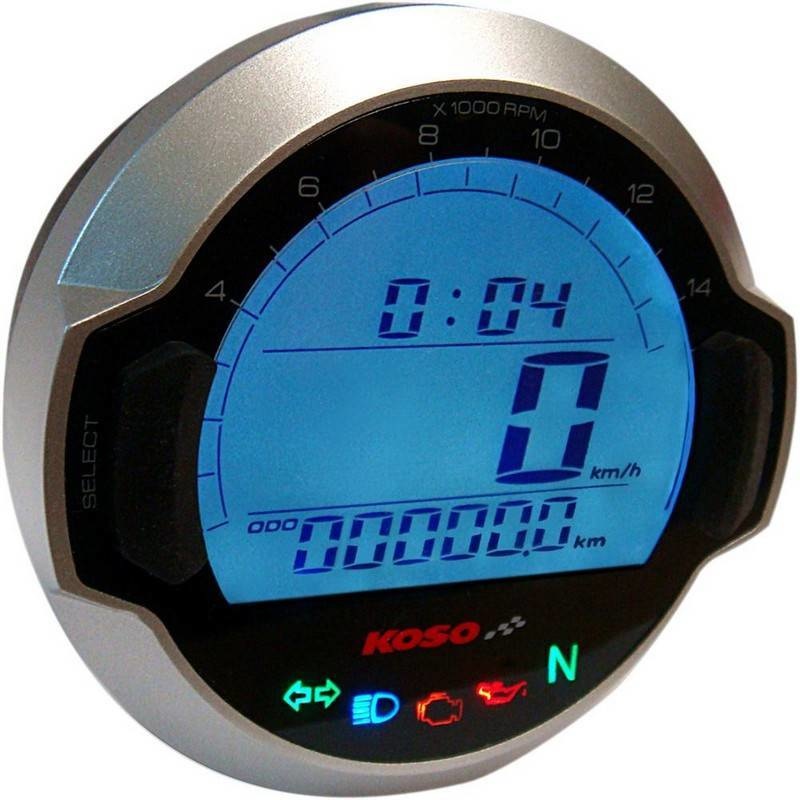

D64 DL-03SR (silver) Speedometer + Indicator Lights (LCD Display)
Function, setting instruction | Speedometer | Display range: 0 ~ 360 km/h (0 ~ 225 MPH) Display unit: 1 km/h (MPH) | | Display interval | <0.5 second | | Odometer | Display range: 0 ~ 99999.9 km/h (mile), reset automatically after ~ 99999.9 km/h (mile)
Display unit: 0.1 km/h (mile) | | Trip meter A.B | Display range: 0 ~ 99999.9 km/h (mile), reset automatically after 0 ~ 99999.9 km/h (mile)
Display unit: 0.1 km/h (mile) | Fuel / Remaining Distance | Display range: 999.9 ~ 0 km (mile) Display unit: 0.1 km/h (mile) | | Tyre circumference | Display range: 300 ~ 2500 mm | | | Display unit: 1mm | | Tachometer | Display range: 15 levels (Each level represents 1000 RPM) | | Fuel Level | Display range: 4 levels (The fuel symbol begins to flash if only 1 level is left.) | | Fuel resistance | Setting range: 100 ohms, 250 ohms, 510 ohms, 1200 ohms | | Clock | 24 H | | Digital Voltmeter | Display range: DC 5 ~ 24 V, Flashing Warning when Voltage lower than 8V or higher than 18V. | | Voltmeter | Display range: 4 levels
Display unit: 1 level (Low) - DC 11.6 ~ 12.0 V
2 level - DC 12.1 ~ 12.5 V
3 level - DC 12.6 ~ 13.0 V
4 level (High) - DC 13.1 V | | Insufficient volt warning | Voltage level begins to flash when only 1 level left | | Backlight brightness adjustment | Setting range: 1-5 (Darkest) ~ 5-5(Brightest)
Setting unit: adding 20 % each adjustment (5 segments) | | Effective voltage | DC 12V | | Effective temperature range | -10 ~ +60°C | | Meter standard | JIS D 0203 S2 | | Meter size | 135.7 X 100.7 X 52 mm | | Meter weight | Around 240g | | Indicator light colour | High beam - blue
Turn signal - green
Oil - red
Neutral - green
EOBD light - Amber |
|
