Please note: one package contains 2 adapters.

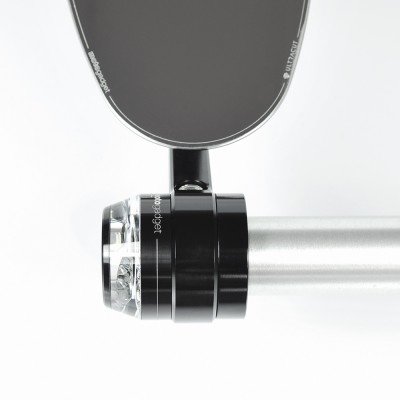

The bar adapter uni disc/cone allows the mounting of all mo.view handlebar end mirrors in combination with the mo.blaze handlebar end indicators without moving the grips and controls on the handlebars. It creates a clamping surface for the handlebar end mirror outside the steering tube and at the same time allows the mounting of the handlebar end indicators. Whether for the mo.view blade, mo.view spy, mo.view flight, mo.view cafe, mo.view road, mo.view pace, mo.view cruise or mo.view street.

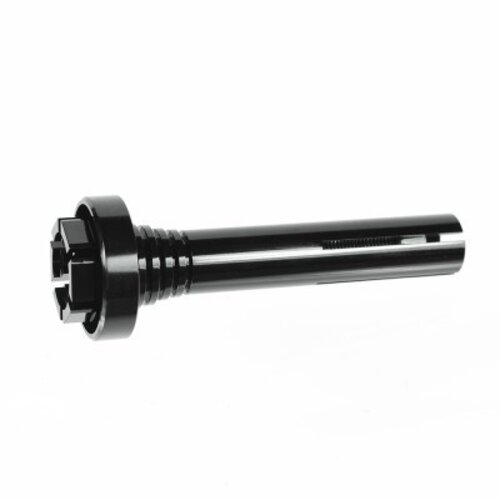

It is CNC machined from billet aluminum and black anodized. The clamping in the handlebar end is done by tightening an M6 screw inside the adapter, whereby the clamping pieces are widened and a stable assembly becomes possible. Then the mirror clamp on the adapter is tightened and the handlebar end indicator is clamped at the same time.

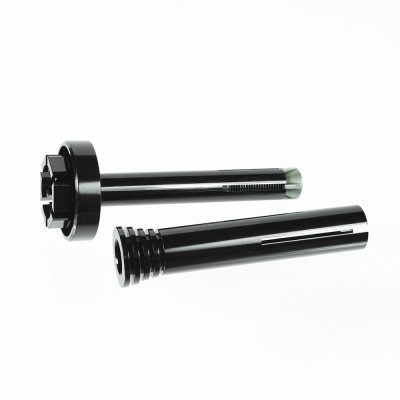

The bar adapter uni disc/cone comes with two clamps for the left and right side of the handlebar. They fit perfectly to our grips mo.grip as well as the push buttons mo.switch basic and mo.switch mini.

They are mounted directly in the handlebar end (22 mm, 7/8 and 1 inch) with a free inside diameter of 12 to 21 mm and a length of 90 mm.
